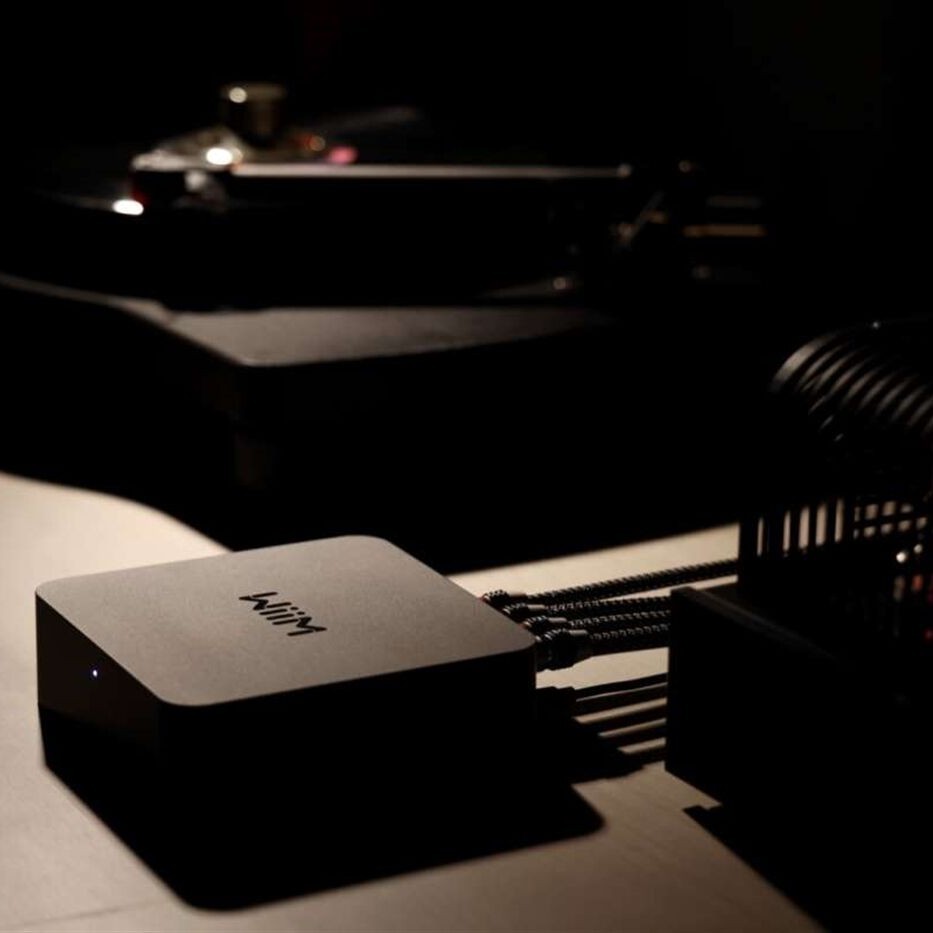

The compact yet powerful WiiM Amp Pro is our second-generation streaming amplifier, designed for true music lovers and home entertainment enthusiasts alike. It boosts the sound quality to a new level and features the latest Wi-Fi 6E and BT 5.3 with BT LE audio support, providing rock-solid wireless connectivity needed for most demanding Hi-Res audio streaming. Seamlessly integrate the WiiM Amp Pro with your classic passive speakers, your cinematic TV setup, or even your vintage recorder player for effortless audio streaming. Use the WiiM Home App to play music from your favorite music services, or straight from your go-to music app. Go hands-free with voice commands via Alexa, Google Assistant, or Siri - all in the highest possible sound fidelity.

• It boosts the sound quality to a new level with Post Filter Feedback (PFFB) technology, ensuring load-independent performance.
• Equipped with the latest Wi-Fi 6E and BT 5.3 with BT LE audio support, it delivers rock-solid wireless connectivity for even the most demanding Hi-Res audio streaming.
• Premium 32-bit/384kHz ES9038 Q2M SABRE DAC and TI TPA3255 Class-D amplifier

Specification :

Audio:
• Amplifier
• Class-D digital amplifier.
• 60 W/channel (8 ohms), 1 20 W/channel (4 ohms).
• Audio input
• Bring your TV audio, recorder player, CD player, or other audio source into the digital world.
• Analog (RCA), digital OpMcal port, HDMI ARC, up to 24-bit/192 kHz.
• Audio output
• Up to 192 kHz/ 24-bit, varying sample rate and bit depth based on the audio source without resampling.
• Two banana plugs:
• SNR: 120 dB
• THD+N (1 kHz): 5 W/8 Ohms: -105 dB, 60W/8 ohms: -100 dB.
• EQ
• Tailor your audio experience with versatile and independent EQ se]ngs for each input source – HDMI, OpMcal, Line, BT, or Network.
• Access a robust suite of sound customization options, including 24 preset EQ settings, a 10-band graphic EQ, and a 10-band parametric EQ for precise sound adjustments.
• AutomaMc room correction of Subwoofer output
• Comprehensive bass management.
• Adjustable crossover frequency, level, phase, and latency.

• Connectivity and power
o 100-240V AC input.
o Wi-Fi 6 E, 802.11 b/g/n/ac/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.
o Bluetooth 5.3 with BT LE audio, supports both A2DP receiver and transmitter, AVRCP and HID work with the WiiM voice remote.
o Ethernet, 10M/100 Mbps.
o USB Media Library – Organize personal media library and use it as a media server across all WiiM devices.
o USB Audio Out - Connect directly to an external USB DAC or amplifier, providing clearer and detailed sound.

• Physical
o Dimension : 7.5 x 7.5 x 2.4 inches (190 x 190 x 63 mm).
o Weight : 4.1 lbs.
o LED : Four-color (RGBW) LED indicates device status and six white LEDs for the volume indicator.
o Volume knob with glass : Adjust volume and play/pause button.
